WE ARE AUCKLAND'S EXPERTS IN CONCRETE AND PAVING SOLUTIONS

Permeable Paving / Our Services

Milford Paving, Concrete, Landscaping are experts in the installation of permeable paving and can provide both advice and assistance to meet Auckland Council requirements. Avoiding urban spread is resulting in greater intensification of existing land areas and Auckland Council is increasingly specifying that permeable paving must be used to detain water on site when additional buildings are erected or existing buildings extended.

Permeable paving 1

Environmentally friendly permeable paving is the perfect way to meet your needs for hard surfaces on driveways, car parks and patios while also ensuring water runoff is detained and then released slowly into the sub-surface. No more torrents of water flowing from your property into the wider storm water or in some cases sewer system when there is a downpour. Modern day Permeable Paving Systems actually operate better than having your house surrounded in lawn.

How does permeable paving work?

The base under the paving is made up of a special stone that allows water to flow through into the ground but retains enough rigidity and structure to hold your paving in place for decades of use.

The paver itself is jointed or porous to allow water to pass through freely.

Think of your paving area as a covered swimming pool that is designed to leak out as fast as it is filled. On the surface your paving looks great, out of sight the water is being absorbed into the sub-soils and not adding to an overloaded storm water system.

Typically the base is 150mm thick which means in times of heavy rain the base area fills up prior to any run-off occurring from the surface paving. If your driveway is, say, 60 metres square, the total area beneath your paving is 9 cubic metres of special stone base. Because the stone allows porosity and has gaps, around 3 cubic metres, or 3000 litres of water can be stored below the paving surface prior to any runoff occurring.

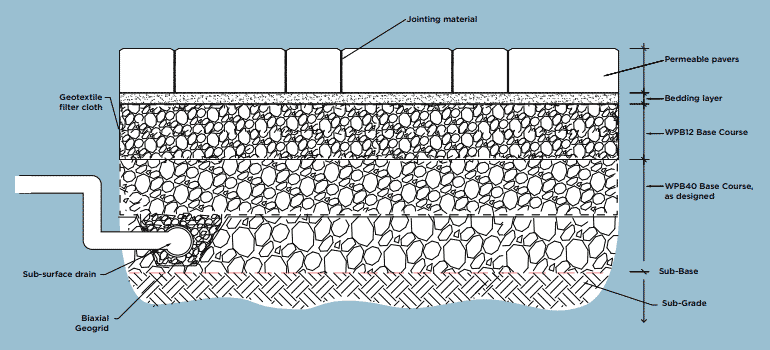

permeable-paving-typical-cross-section

The short video below demonstrates the key benefits and types of permeable paving.

Two examples of our Auckland permeable paving projects from start to finish (slideshow)

PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
PERMEABLE PAVING PAVERS
Previous
Next
PERMEABLE PAVING BOWERS AQUASTONE
PERMEABLE PAVING BOWERS AQUASTONE
PERMEABLE PAVING BOWERS AQUASTONE
PERMEABLE PAVING BOWERS AQUASTONE
PERMEABLE PAVING BOWERS AQUASTONE
PERMEABLE PAVING BOWERS AQUASTONE
PERMEABLE PAVING BOWERS AQUASTONE
PERMEABLE PAVING BOWERS AQUASTONE
PERMEABLE PAVING BOWERS AQUASTONE
PERMEABLE PAVING BOWERS AQUASTONE
PERMEABLE PAVING BOWERS AQUASTONE
Previous
Next

Permeable Paving Project as featured on Firth.co.nz

Permeable paving 2

Firth PorousPave™ perfect for new Newbies

Andrew Harvey and Mandy Jones owner operators of Newbies Early Learning Centre in Northcote on Auckland’s north shore, decided that the family demographic in Birkdale included a lot of young families and would be the ideal location for a second Newbies Early Learning Centre. When a prime location came up right across the road from Birkdale Primary School it was almost a sign for the couple to start on plans for a new centre!

“It took about three years from start to finish to purchase the land, obtain planning and building consent, and for construction and completion of the new centre,” says Andrew.

“The Northcote centre was a renovation whereas the Birkdale centre we built from scratch. We commissioned Fat Parrot Architecture, who have a great reputation for building early learning centres, to work with us to design the centre. It was an easy choice and one we are very happy we made.”

“Originally the design was to include precast panels but due to geotechnical constraints it was later changed to a lighter timber framed structure clad with weatherboards,” says Marian Kubes of Fat Parrot Architecture.

“In keeping with the residential look, as the site is surrounded by residential properties, we wanted the new centre to look as though it belonged there, and didn’t want a large expanse of industrial looking concrete or asphalt to clash with the residential feel of the area. We decided on pavers, which were always the look of choice, which with their delicate pattern would add interest and human scale to the otherwise plain forecourt.”

Marian says that while investigating options for the paving he came across the Firth EcoPave™ Permeable Paving range on the Firth website. “I have actually used Firth permeable paving before and looking at the specifications and the colour choices it was decided to use PorousPave™.”

Permeable paving 3

“A big plus of permeable pavers is that they enable us to catch rain water where it falls as opposed to having to deal with large quantities of surface water at the lower end of the paved area. This is particularly useful on sloping sites like this one.”

“With Firth PorousPave™ available in two colour options we decided we wanted to use the lighter colour ‘Natural’ to delineate the parking bays from the rest of the forecourt and to use the darker colour ‘Black Sands’ for the main driveway,” says Marian.

“Peter McIntyre and his team from Lanta Construction, who we also used for the renovation on the Northcote centre, did another amazing job as did Colin Pile from Milford Paving who laid the large area of paving,” says Andrew. “Even though we were delayed last year by the COVID 19 lockdowns, construction was finally complete in November last year and we were able to open. Mandy and I are very pleased with the new facility and very happy with the team-work of all concerned.”

Permeable paving suppliers?

Milford Paving, Concrete, Landscaping install Firth, Bowers Brothers and Jagas permeable paving. Grass and Gobi paving can also be installed using the same system to provide a permeable solution. Check the Firth, Bowers and Jagas websites to get an idea of what paving might be best suited to you needs. We can competently install any of them to your requirements.

Contact us today for advice or a free quote on your next residential or commercial Project.
